Start your U-value calculation >An increasingly popular way of constructing new-build dwellings is to use a timber framed construction rather than traditional masonry cavity wall construction. Building with timber framed construction can offer a number of advantages and benefits over building with a more traditional form of construction, such as lighter weight and a higher speed of construction.

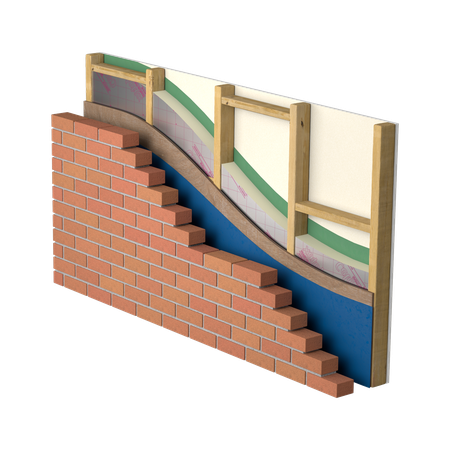

In a timber-framed wall, insulation is typically installed between the studs. This insulation can be PIR (Celotex GA4000 or XR4000 can be considered) or glass mineral wool (ISOVER Timber Frame Roll or Batt can be considered).
Depending on U-value requirements, there may be additional insulation required. This can be placed outside the sheathing board (i.e. within the external wall cavity); products such as Celotex GA4000, Celotex XR4000 or ISOVER Polterm Max Plus can be considered.
Insulation could also be installed internally on the warm side of the studwork, such as a plasterboard laminate (PL4000 can be considered) or a PIR insulation board (Celotex TB4000 or GA4000 can be considered) alongside a separate layer of plasterboard.
Key Considerations
When using Celotex or ISOVER products, you need to satisfy yourself that use of the product meets all relevant national Building Regulations and guidance as well as local, national and other applicable standards relevant for your construction or application, including requirements in relation to fire and applicable height restrictions. In addition to the product datasheet, please refer to the following product documents:
- BBA certificates - where applicable to the application
- Declarations of Performance
- Health & safety datasheets
Celotex products should not be used in the external walls of buildings over 11 metres in height. Recent changes to Building Regulations mean that only non-combustible insulation or insulation of limited combustibility should be used in buildings of that height.
The building detail is for illustrative purposes only. It does not constitute advice and should not be relied upon.
Insulation products
Product Name | Thickness Range | Sizes | Lambda |
---|---|---|---|
Celotex GA4000 | 50-100mm | Width 1200mm, Length 2400mm | 0.022 |
ISOVER Timber Frame Roll 32 | 90-140mm | Width 2 x 0.57m, Length 2.7 - 4.2m | 0.032 |
ISOVER Timber Frame Roll 40 | 90-140mm | Width 2 x 0.57m, Length 6.5 - 10.13m | 0.040 |
ISOVER Timber Frame Batt 40 | 90-140mm | Width 570mm, Length 1175mm | 0.040 |
ISOVER Timber Frame Batt 35 | 90-150mm | Width 570mm, Length 1175mm | 0.035 |
ISOVER Timber Frame Batt 32 | 50-140mm | Width 570mm, Length 1175mm | 0.032 |
Celotex XR4000 | 110-200mm | Width 1200mm, Length 2400mm | 0.022 |
Celotex TB4000 | 20-40mm | Width 1200mm, Length 2400mm | 0.022 |
Celotex PL4000 | 25-65mm (+12.5mm Plasterboard) | Width 1200mm, Length 2400mm | 0.022 |
ISOVER Timber Frame Roll 35 | 90-140mm | Width 2 x 0.57m or 3 x 0.4m (140mm only), Length 4 - 5.3m | 0.035 |
ISOVER Polterm Max Plus | 50-200mm | Width 600mm, Length 1200mm | 0.035 |
ISOVER Timber Frame Batt 43 | 90-140mm | Width 570mm, Length 1175mm | 0.043 |
